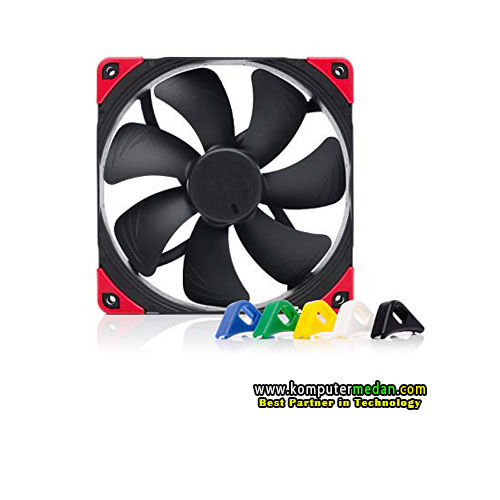

Deskripsi Noctua NF-A14 PWM CH.BK.S

FAN Specification
Size 140x140x25 mm
Mounting hole spacing 124,5x124,5 mm
Connector & pin-configuration 4-pin PWM
Cable length 1cm + 30cm NA-EC1 extension cable
Bearing SSO2
Blade geometry A-Series with Flow Acceleration Channels
Frame technology AAO (Advanced Acoustic Optimisation)
Rotational speed (+/- 10%) 1500 RPM
Min. rotational speed (PWM, +/-20%) 300 RPM
Airflow 140,2 m³/h
Acoustical noise 24,6 dB(A)
Static pressure 2,08 mm H₂O
Max. input power 1,56 W
Max. input current 0,13 A
Operating voltage 12 V
MTTF > 150.000 h

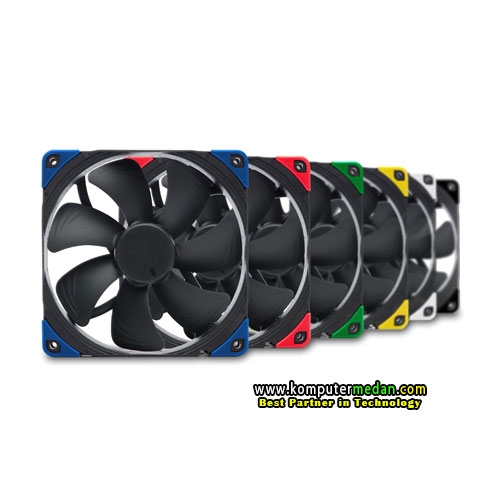

Scope of delivery
4x NA-AVP1 chromax•black anti-vibration pads
4x NA-AVP1 chromax•blue anti-vibration pads
4x NA-AVP1 chromax•green anti-vibration pads
4x NA-AVP1 chromax•red anti-vibration pads
4x NA-AVP1 chromax.white anti-vibration pads
4x NA-AVP1 chromax.yellow anti-vibration pads
4x fan screws
