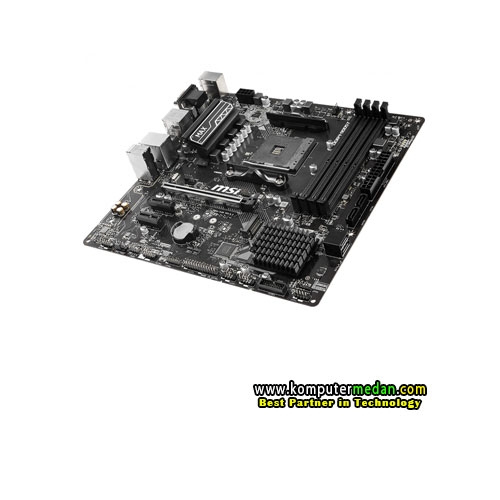

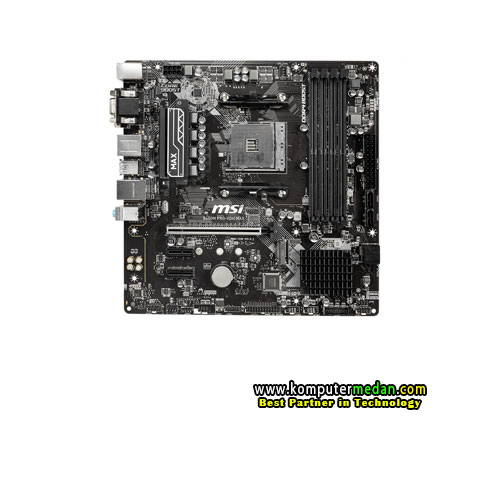

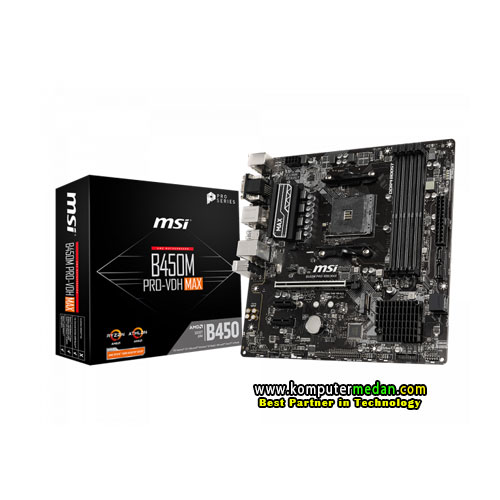

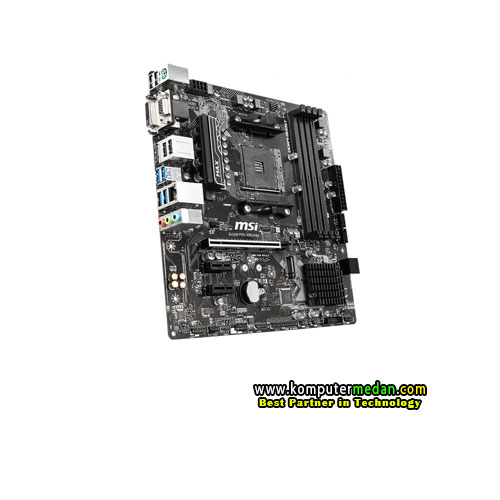

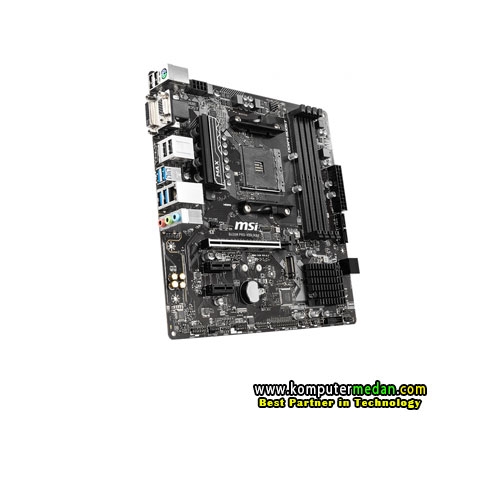

Deskripsi Motherboard MSI B450M Pro VDH MAX

Model : B450M Pro VDH MAX
CPU Type : AMD AM4 Socket 3rd and 2nd AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors / Athlon with Radeon Vega Graphics
Chipset : B450
Memory Standard : 4 x DDR4 DIMM, Supports DDR4 Memory, up to 3466+(OC) MHz
Maximum Memory Supported : 64GB Dual Channel
Expansion Slots : 1 x PCIe 3.0 x16, 2 x PCIe 2.0 x1
SATA Port : 4 x SATA 6Gb/s
M.2 : 1 x M.2 slot (Key M)
Onboard Video Chipset : Integrated AMD Radeon™ Graphics (APU Only)
Multi-GPU support : -
Audio Chipset : Realtek ALC892
LAN Chipset : Realtek 8111H

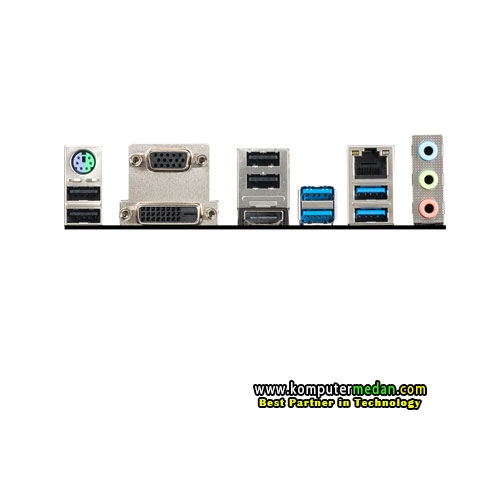

Rear Panel Ports : PS/2, VGA Port, USB 2.0 Port, USB 3.2 Gen1, LAN Port, HD Audio Connectors, DVI-D Port, HDMI Port
Form Factor : m-ATX (24.4 cm x 24.4 cm)
