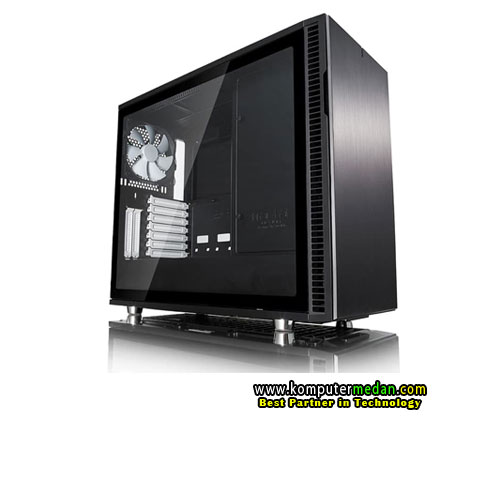

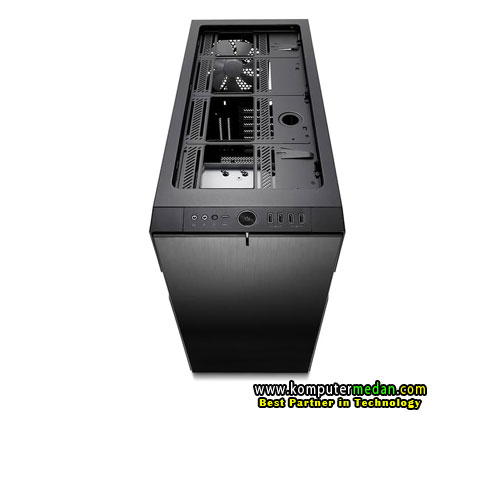

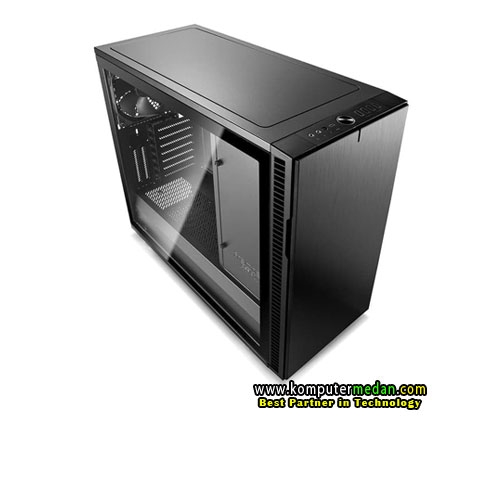

Deskripsi Casing PC Fractal Design Define R6 USB-C TG Blackout

3.5"/2.5" Universal drive brackets

6

Dedicated 2.5" drive brackets


2

Dedicated 5.25" drive bracket


1 (removable)

Expansion slots


7 + 2 vertical

Motherboard compatibility


EATX (up to 285 mm wide), ATX, mATX, ITX

Power supply type


ATX

Front ports


1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O

Total fan mounts


9

Front fan


3 x 120 mm or 2 x 140 mm, (2 x Dynamic X2 GP-14 included)

Top fan


Standard layout: 3 x 120 or 2 x 140

Open layout: 3 x 120/140 mm

Rear fan


1 x 120/140 mm (1 x Dynamic X2 GP-14 included)

Bottom fan


2 x 120/140 mm

Dust filters


Bottom fan + PSU

Front fans

Top panel

Front radiator


120/240/360 mm

140/280 mm

Top radiator


Standard layout:

- 120/240/140/360 mm (max 35 mm motherboard component height)

Open layout:

- 120/240/360 mm

- 140/280/420 mm (max 35 mm motherboard component height)

Rear radiator


120 mm

Bottom radiator


120/240 mm

140/280 mm

PSU max length


300 mm

GPU max length


Max 440 mm with front fan mounted

Standard layout: Maximum width 155 mm (including power connectors) for graphics cards longer than 300 mm.

CPU cooler max height


185 mm

Cable routing space


23 mm

Cable routing grommets


Yes

Fixed velcro straps


Yes

Tool-less push-to-lock


Both side panels

Captive thumbscrews


HDD brackets, SSD brackets

Left side panel


Tempered glass

Right side panel


Industrial sound-dampened steel

Dimensions


Define R6 USB-C - TG

Case dimensions (LxWxH)


543 x 233 x 465 mm

Case dimensions w/o feet/protrusions/screws


535 x 233 x 448 mm

Net weight
12.4 kg

Package dimensions (LxWxH)


535 x 325 x 650 mm

Package weight
14.2 kg
