Model
Brand MSI

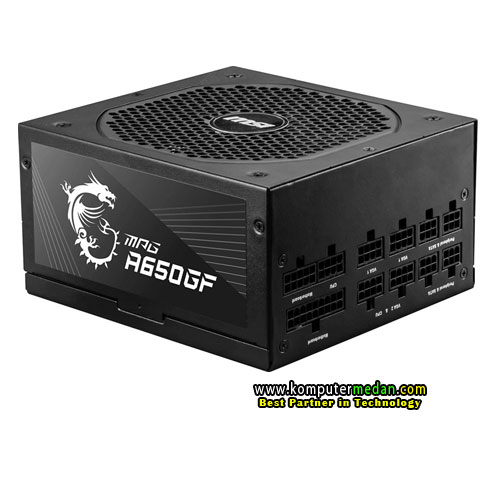

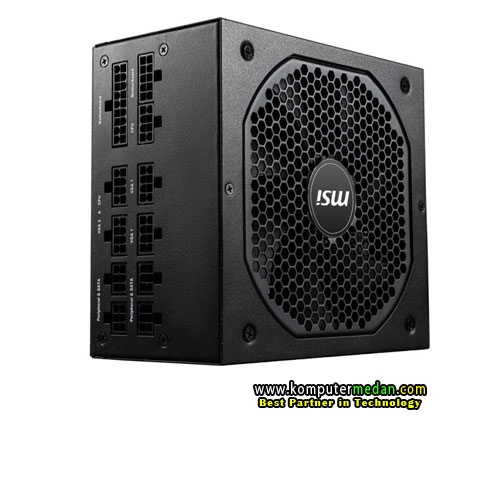

Model MPG A650GF

Details
Type ATX
Maximum Power 650W
Fans 1 x 140mm FDB Bearing Fan
PFC Active
Main Connector 20+4Pin
+12V Rails 4
PCI-Express Connector 4 x 6+2-Pin
SATA Power Connector 8
Modular Full Modular
Efficiency Up to 90%
Energy-Efficient 80 PLUS GOLD Certified
Protection OCP / OVP / OPP / OTP / SCP / UVP
Input Voltage 100 - 240 V
Input Frequency Range 47 - 63 Hz
Input Current 10A @ 115V, 5A @ 230V
Output +5V@20A, +3.3V@20A, +12VMBPH@25A, +12VCPU@25A, +12VVGA1@30A, +12VVGA2@30A, -12V@0.3A, +5VSB@2.5A

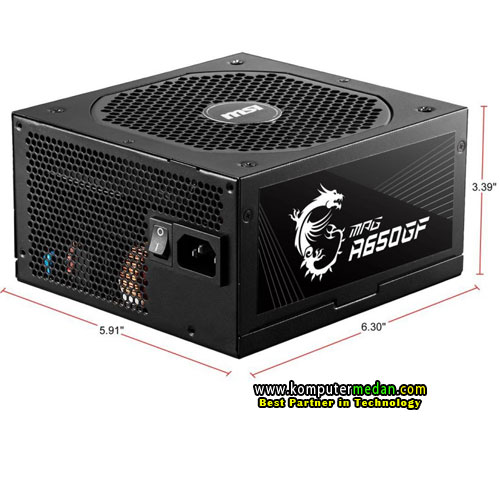

Dimensions 3.39" x 5.91" x 6.30"
Max PSU Length 160 mm

Features

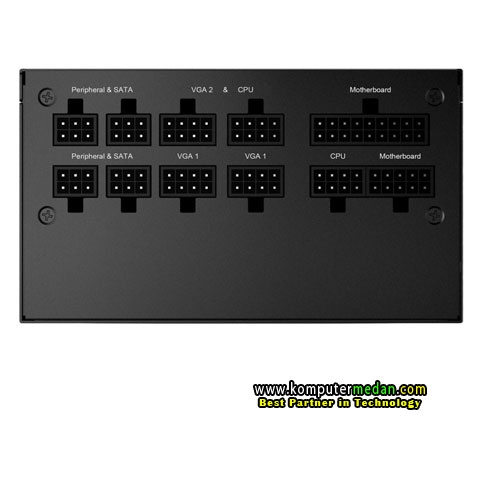

Connectors
1 x ATX/MB 24 Pin
2 x CPU/EPS 4+4 Pin
4 x PCI-e 6+2 Pin
8 x SATA
5 x Peripheral

Features
Full Module Cable design
Flat Cable equipment
80 Plus Gold Certified for High Efficiency
100% all Japanese 105oC capacitor
Active PFC design
10-year warranty
Supports latest Nvidia graphic card design
Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
LLC Half Bridge Topology with DC-DC Module Design
