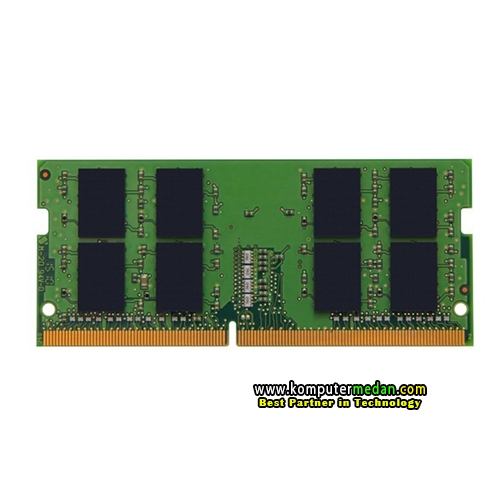

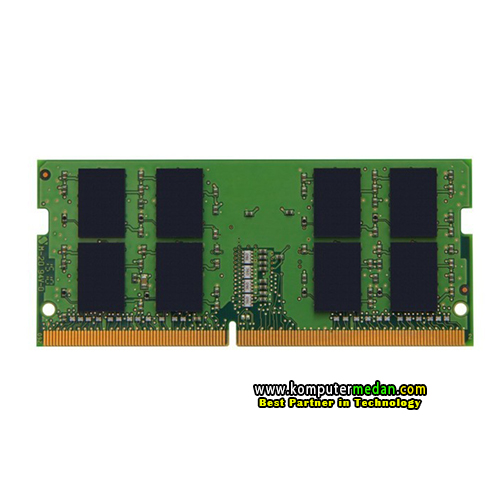

KVR32S22S8/8
8GB 1Rx8 1G x 64-Bit PC4-3200
CL22 260-Pin SODIMM

Memory Size: 8GB
Memory Technology: DDR4 SDRAM
Memory Voltage: 1.20 V
Number of Modules: 1 x 8 GB
Memory Speed: 3200 MHz

CL(IDD) : 22 cycles
Row Cycle Time (tRCmin) : 45.75ns(min.)
Refresh to Active/Refresh : 350ns(min.)
Command Time (tRFCmin)
Row Active Time (tRASmin) : 32ns(min.)
UL Rating : 94 V - 0
Operating Temperature : 0C to +85C

• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Single-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8
via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free
