Model

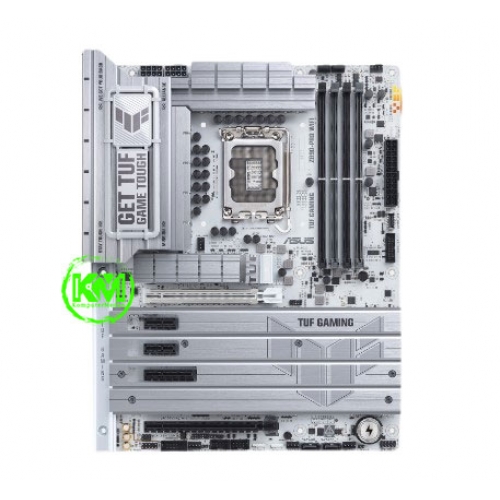

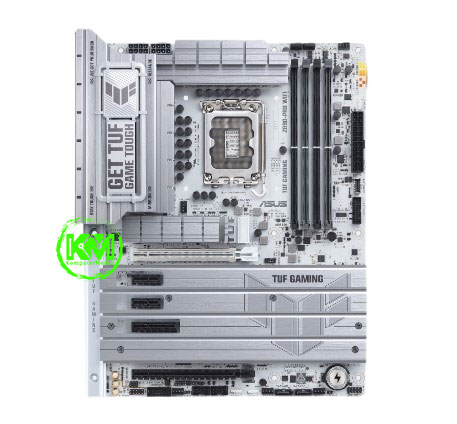

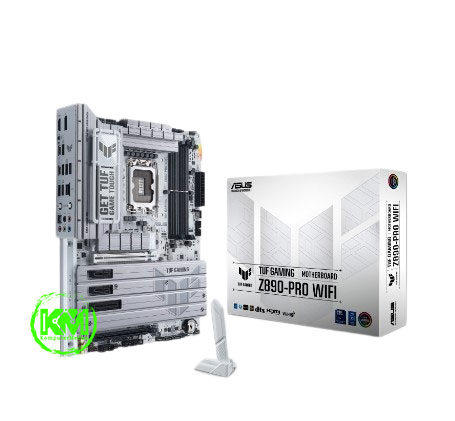

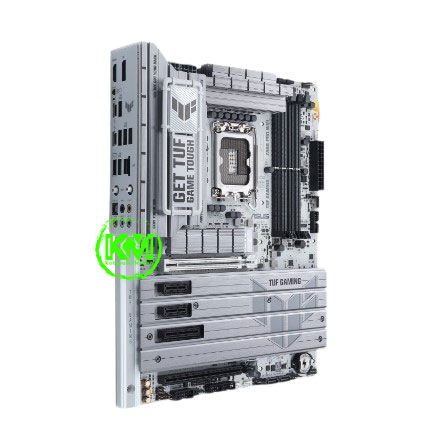

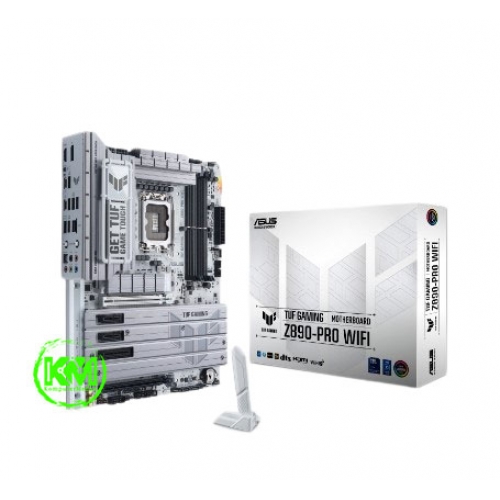

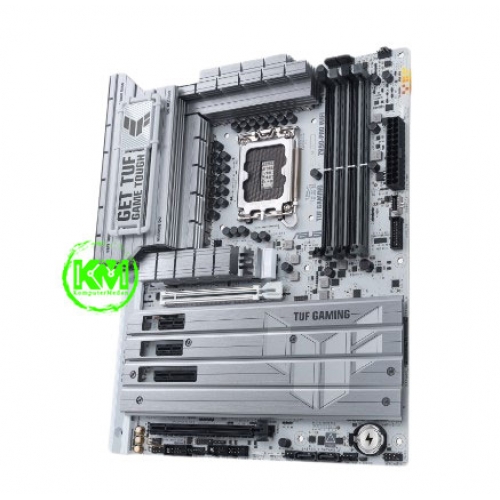

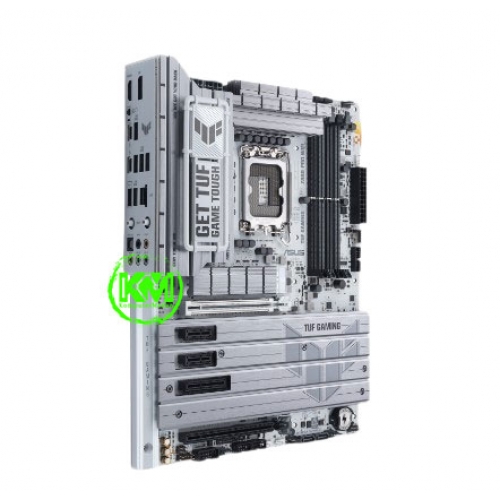

TUF GAMING Z890-PRO WIFI

CPU

Support Intel® Core™ Ultra Processors (Series 2), LGA1851*

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® Z890 Chipset

Expansion Slots

Intel® Core™ Ultra Processors(Series 2)*

1 x PCIe 5.0 x16 slot

Intel® Z890 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

1 x PCIe 4.0 x4 slot

2 x PCIe 4.0 x1 slots

Storage

Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel® Core™ Ultra Processors(Series 2)*

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

Intel® Z890 Chipset

M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

• Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5.

Ethernet

1 x Intel® 2.5Gb Ethernet

TUF LANGuard

Wireless & Bluetooth

Wi-Fi 7*

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band**

Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.

Bluetooth® v5.4***

*Wi-Fi features may vary depending on the operating system

For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.

For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.

** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.

*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 8 ports)

2 x Thunderbolt™ 4 ports (2 x USB Type-C®)

6 x USB 10Gbps ports (6 x Type-A)

Front USB (Total 7 ports)

1 x USB 20Gbps (supports USB Type-C® with up to 30W PD/PPS Fast-charge )*

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

• USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A

Audio

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*

• Impedance sense for front and rear headphone outputs

• Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

• Supports up to 32-Bit/192 kHz playback*

Audio Features

• Audio Shielding

• Rear optical S/PDIF out port

• Premium audio capacitors

• Dedicated audio PCB layers

• Audio cover

• Unique de-pop circuit

• Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

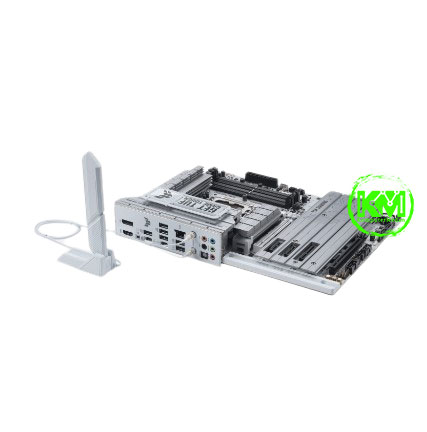

Back Panel I/O Ports

2 x Thunderbolt™ 4 USB Type-C® ports

6 x USB 10Gbps ports (6 x Type-A)

1 x DisplayPort

1 x HDMI™ port

1 x Wi-Fi module

1 x Intel® 2.5Gb Ethernet port

5 x Audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button

Internal I/O Connectors

Fan and Cooling Related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

Power Related

1 x 24-pin Main Power connector

2 x 8-pin +12V CPU Power connectors

Storage Related

4 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 20Gbps connector (supports USB Type-C® )

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x Clear CMOS header

1 x Chassis Intrusion header

1 x COM Port header

1 x Front Panel Audio header (F_AUDIO)

1 x 10-1 pin Front System Panel header

1 x Thermal Sensor header

1 x Thunderbolt™ (USB4®) header

Special Features

ASUS TUF PROTECTION

• DIGI+ VRM (- Digital power design with DrMOS)

• ESD Guards

• TUF LANGuard

• Overvoltage protection

• SafeSlot

• Stainless-steel back I/O

ASUS Q-Design

• M.2 Q-Latch

• M.2 Q-Release

• M.2 Q-Slide

• Q-Release Slim (with PCIe SafeSlot)

• Q-Antenna

• Q-Dashboard

• Q-DIMM

• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

• Q-Slot

ASUS Thermal Solution

• M.2 heatsink backplate

• M.2 heatsink

• VRM heatsink design

ASUS EZ DIY

• BIOS FlashBack™ button

• BIOS FlashBack™ LED

• CPU Socket lever protector

• ProCool

• Pre-mounted I/O shield

• SafeDIMM

Aura Sync

• Addressable Gen 2 headers

Front Panel USB 20Gbps with PD Fast Charge Support

• Support: up to 30W fast charging and USB Wattage Watcher

• Output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A

• Compatible with PD3.0
