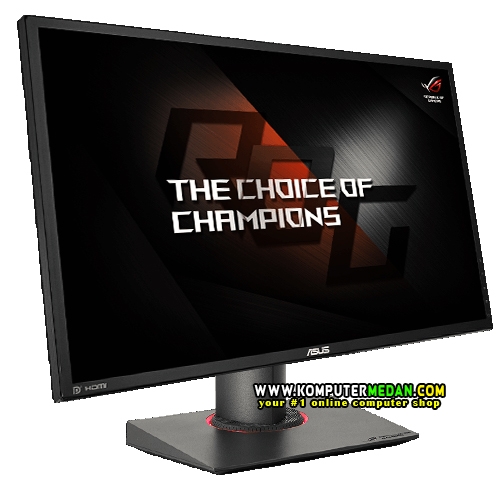

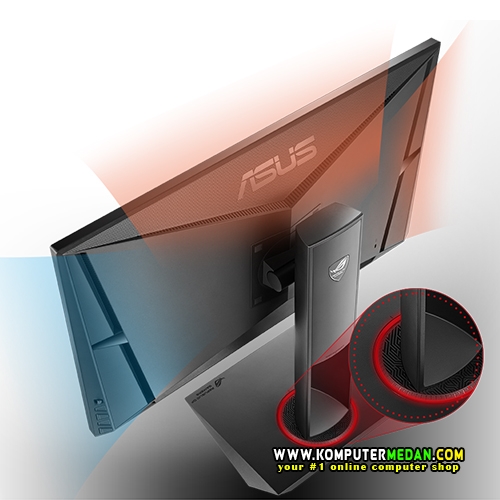

Ready, ASUS ROG Swift PG248Q eSports Gaming Monitor
24.0” Wide, 1920 x 1080 Resolution, TN Panel, 180Hz(OC), 1ms
Signal Input : HDMI, DisplayPort, G-SYNC Technology
Panel Size
|
Wide Screen 24.0"(61.0cm) 16:9 |
| Panel Backlight / Type |
TN |
| True Resolution |
1920x1080 * |
| Display Viewing Area(HxV) |
531.36 x 298.89 mm |
| Display Surface |
Non-glare |
| Pixel Pitch |
0.2768mm |
| Brightness(Max) |
350 cd/㎡ |
| Contrast Ratio |
1000:1 |
| Viewing Angle (CR≧10) |
170°(H)/160°(V) |
| Response Time |
1ms (Gray to Gray) |
| Display Colors |
16.7M |
| Flicker free |
Yes |
Video Feature
| Trace Free Technology |
Yes |
| Color Temperature Selection |
4 Modes |
| Gamma adjustment |
Yes (Support Gamma 1.8/2.2/2.5 ) |
| GamePlus(modes) |
Yes (Crosshair/Timer/FPS Counter/Display Alignment) |
| Low Blue Light |
Yes |
| HDCP support |
Yes |
| GameVisual |
6 Modes(Scenery/Racing/Cinema/RTS/RPG/FPS/sRGB Modes) |
Audio Feature
I/O Ports
| HDMI |
1 |
| DisplayPort |
1 |
| DVI |
- |
| D-Sub |
- |
| USB |
2 (USB 3.0)
|
Signal Frequency
| Digital Signal Frequency |
- |
| Analog Signal Frequency |
- |
Power Consumption
| Power ON mode |
<65W (measuring a screen brightness of 200 nits without audio/ USB/ Card reader connection) |
| Power Saving/Off mode |
<0.5W |
| Voltage |
100-240V, 50/60Hz |
Mechanical Design
| Chassis Colors |
Black |
| Tilt |
+20°~-5° |
| Swivel |
+60°~-60° |
| Pivot |
0°~+90° |
| Height Adjustment |
0~120 mm |
| VESA Wall Mounting |
100x100mm |
Dimensions
|
Phys. Dimension with Stand(WxHxD)
|
561.6x(418.2~538.2)x237.9 mm |
| Phys. Dimension without Stand(WxHxD) |
561.6x329.7x70 mm |
Weight
| Net Weight(Esti.) |
6.6kg |
| Gross Weight(Esti.) |
9.5kg |
Note
| *PG248Q supports 1920x1080 @ 144Hz (Overclock to 180Hz) |
|
**Digital Signal Frequency:
HDMI:30~90KHz(H)/24~60Hz(V)
DisplayPort (Normal):67~166KHz(H)/30~144Hz(V)
DisplayPort (Overclock):67~212KHz(H)/30~180Hz(V)
|
|
