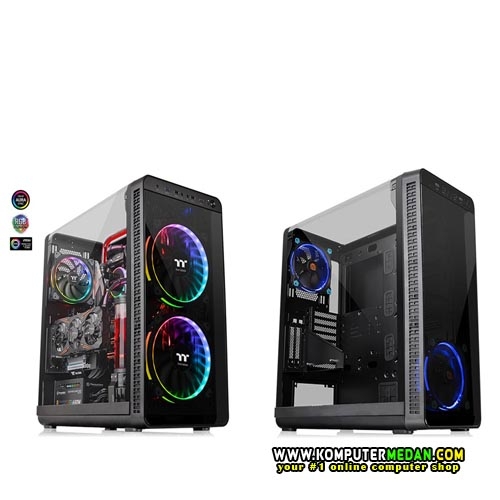

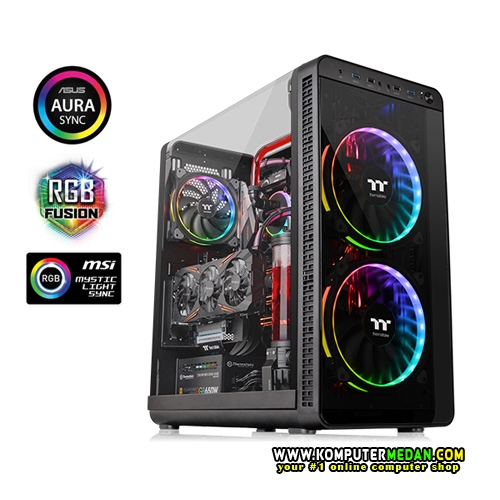

| Case Type |
Mid Tower |
| Dimension (H x W x D) |
525 x 261 x 538mm
(20.6 x 10.3 x 21.2 inch) |
| Net Weight |
11.8 kg / 26.01 lb |
| Side Panel |
L-type transparent window |
| Color |
Exterior & Interior : Black |
| Material |
SPCC |
| Cooling System |
Front (intake) :
140 x 140 x 25 mm Riing LED Blue fan (1400rpm, 28dBA) x 1
(1000rpm, 22dBA with LNC)
Rear (exhaust) :
140 x 140 x 25 mm Riing LED Blue fan (1400rpm, 28dBA) x 1
(1000rpm, 22dBA with LNC) |
| Drive Bays |
Accessible
3 x 3.5’’ or 2.5’’(HDD tray)
Hidden
8 x 2.5’’ or 4 x 3.5” (HDD Bracket) |
| Expansion Slots |
8 + 2 |
| Motherboards |
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (E-ATX) |
| I/O Port |
USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1 |
| PSU |
Standard PS2 PSU (optional) |
| Fan Support |
Front:
3 x 120mm, 3x 140mm, 2 x 200mm
Rear:
1 x 120mm
Right Side(In front of M/B Tray):
3 x 120mm, 3 x 140mm
Bottom:
1 x 120mm, 1 x 140mm |
| Radiator Support |
Front: 1 x 360mm , 1 x 280mm
Rear: 1 x 120mm
Right Side(In front of M/B Tray): 1 x 360mm, 1 x 420mm |
| Clearance |
CPU cooler height limitation: 180mm
PSU length limitation:220mm
VGA length limitation: 410mm (Without Front Fan)
Vertical VGA width limitation: 3 Expansion Slot width (60mm) |
